Universal Process Indicator

N1540-AO : 2 x Relay + 1 x 4-20 mA Output

N1540-485 : 2 x Relay + Rs485 Modbus

N1500 : 4 x Relay + 1 x 4-20 mA output + Rs485 Modbus

Versions

Versions	N1540-AO	N1540-485	N1500
Pictures
Dimension	48 x 96 mm Depth : 35 mm Panel Cut : 45,5 x 93 mm	48 x 96 mm Depth : 35 mm Panel Cut : 45,5 x 93 mm	48 x 96 mm Depth : 92 mm Panel Cut : 45,5 x 93 mm
Input Types	Pt100, Thermocouple Temperature sensor 0-20 mA, 4-20 mA, 0-50 mV, 0-5 Vdc, 0-10 Vdc Non-Linear 4-20 mA	Pt100, Thermocouple Sıcaklık Sensörleri 0-20 mA, 4-20 mA, 0-50 mV, 0-5 Vdc, 0-10 Vdc Non-Linear 4-20 mA	Pt100, Thermocouple Sıcaklık Sensörleri 0-20 mA, 4-20 mA, 0-50 mV, 0-5 Vdc, 0-10 Vdc Non-Linear 4-20 mA, 0-20 mA, 0-5 Vdc, 0-10 Vdc
Output 1	Relay	Relay	Relay
Output 2	Relay	Relay	Relay
Output 3	4-20 mA	Rs485 Modbus	Relay
Output 4	-	-	Relay
Output 5	-	-	4-20 mA
Output 6	-	-	Rs485 Modbus
Power Output for sensors	Yes 24 Vdc (20 mA)	Yes 24 Vdc (20 mA)	Yes 24 Vdc (20 mA)
Power	100...240 Vac	100...240 Vac	100...240 Vac
Configuration	via keypad on device or configuration software by pc in USB cable connection	via keypad on device or configuration software by pc in USB cable connection	via keypad on device or configuration software by pc in USB cable connection
Connection Diagram

N1500 User Manual Download

N1500 Data Sheet Download

N1540 User Manual Download

N1540 Data Sheet Download

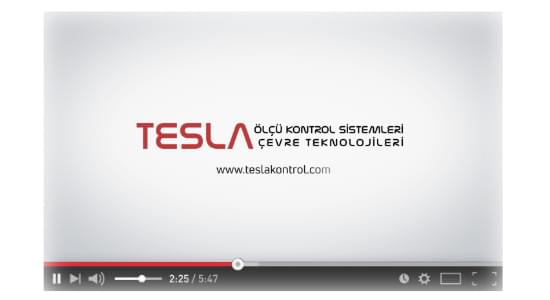

N1500 Video Watch

N1540 Video Watch
