N1030T PID Temperature Controller

What Is the NOVUS N1030 PID Temperature Controller?

The NOVUS N1030 is a compact PID temperature controller that manages heating or cooling outputs to maintain the value received from the temperature sensor at the setpoint. With easy operation, automatic PID tuning, and a panel-mount design, it is suitable for basic temperature control applications.

PID Temperature Controller Specifications

Models	NOVUS N1030T PID Temperature Controller
Dimensions	48 x 48 mm Depth: 35 mm
Control Type	ON/OFF Proportional (P) PID (AutoTune)
Input 1	Selectable Temperature Sensor Types J - K - T Thermocouples Pt100

Output 1	Pulse (DO) 5 VDC 25 mA
Output 2	Relay 1.5 A (NO Relay)

Display	2-Line 7-Segment Display

Temperature Controller Power Supply	100-240 VAC

NOVUS N1030 PID Temperature Controller User Manual Download

NOVUS N1030 PID Temperature Controller Catalog Download

What Is the Most Important Feature of the N1030T PID Temperature Controller?

The NOVUS N1030 Temperature Controller supports PID, ON/OFF and Proportional control modes. One of the J, K or T type thermocouples or a Pt100 sensor can be configured as the input. It also features a built-in timer function.

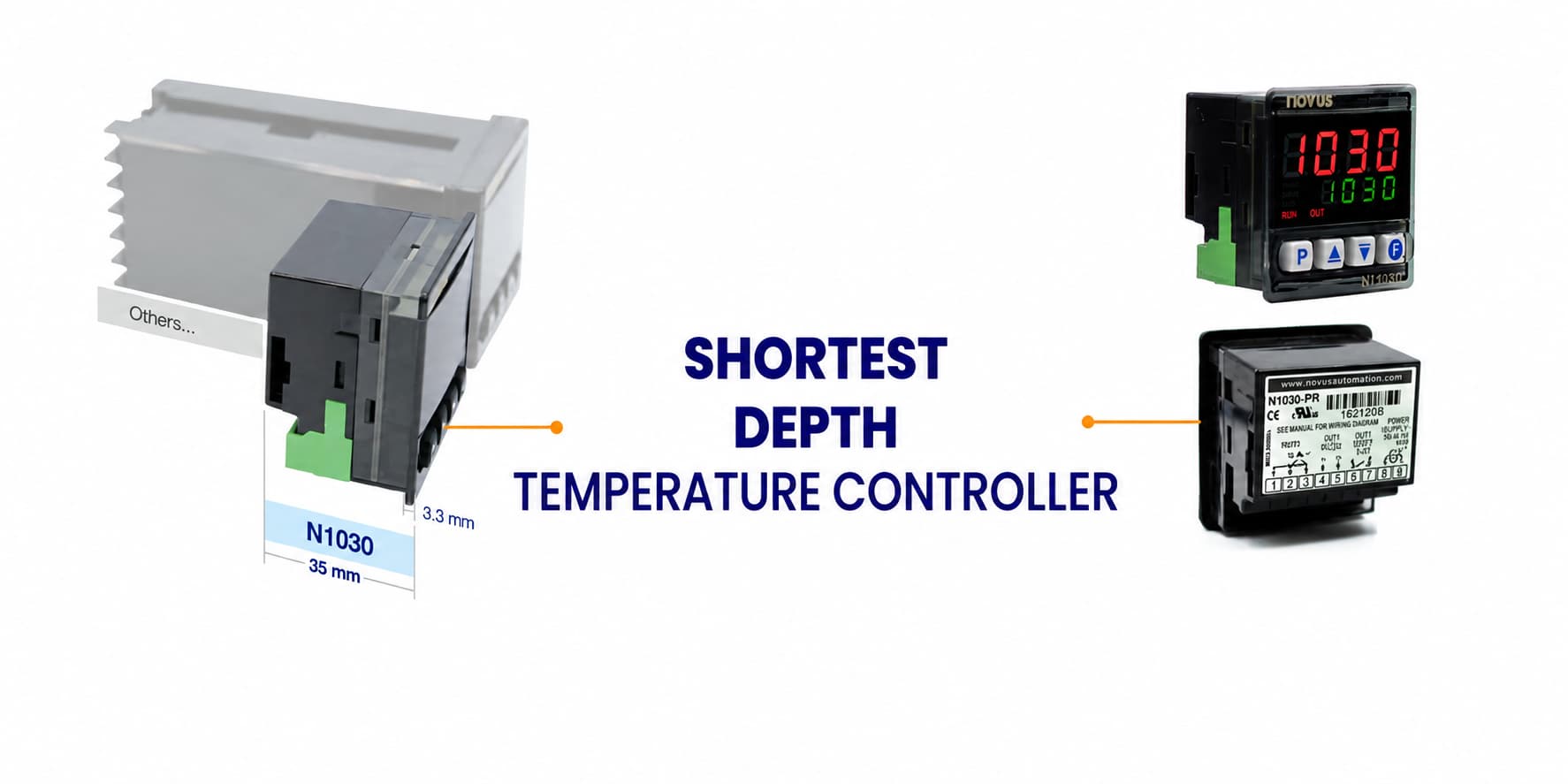

Its most important feature is its extremely short mounting depth, making it one of the most compact temperature controllers on the market. It is an ideal solution for projects where panel depth is limited.

The NOVUS N1030 Temperature Controller is generally available from stock.

For more information about temperature controllers, please contact our company.
